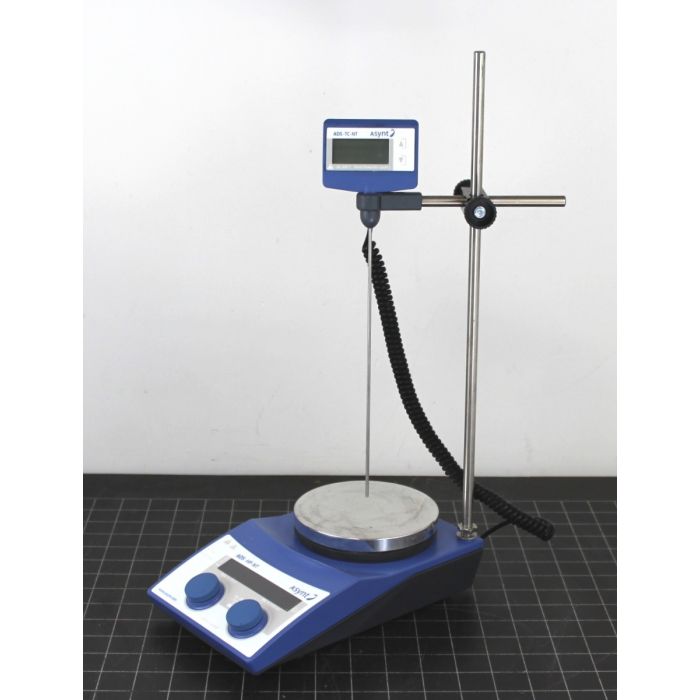

Asynt ADS-HP-NT Magnetic Hotplate Stirrer (IKA RCT B)

Asynt ADS-HP-NT Magnetic Hotplate Stirrer

With a Hotplate stirrer, temperature sensor, electronic fuzzy logic temperature controller,
holding rod, support rod and the boss head clamp you’re all set to start stirring and heating at controlled temperatures.

• Two independent temperature safety circuits
• Stronger motor for a higher range of speeds
• Integrated temperature control
• Exact temperature and speed setting via digital display, even when switched off.
• Hot Top indicator - hot surface warning to prevent burns.
• With adjustable safety circuit of heating plate temperature (50 to 360oC)
• Suitable for unsupervised operation.
• Bushing according to DIN 12878 for connecting a contact thermometer enables precise temperature control (With ADS-TC-NT included).
• Enclosed motor assembly guarantees long service life

Technical Data
Stirring quantity (H20) 20 L
Motor rating input 16 W
Motor rating output 9 W
Speed display digital
Speed range 50 - 1.500 min-1
Max. magnetic bar (L x Ø) 80 x 10 mm

Heating function
Heat output 600 W
Heating rate (1 / H20) 6,5 K/min
Temperature range RT - 310 oC
Setting accuracy ± 1 K
Adjustable safety circuit 50 - 360 oC
Controll accuracy with sensor ADS-TC-NT / ± 0,5 K
Material alumium alloy
Dimensions Ø 135 mm

General data
Dimensions (W xD x H) 160 x 270 x 85 mm
Weight 2,5KG
Permissable ambient temperature 5 - 40 oC
Permissible relative humidity 80%
Protection class acc. To DIN EN 60529 IP 42

Serial# 01.793922

pdf manual
