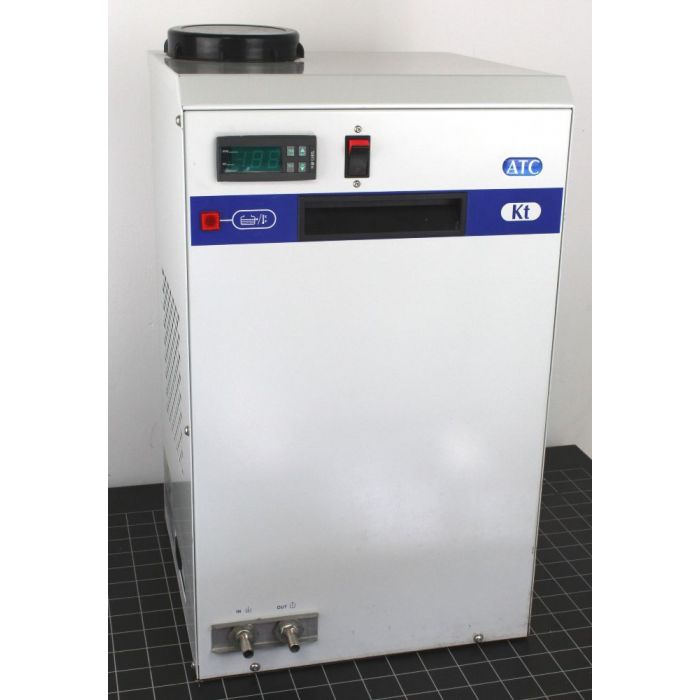

Applied Thermal Control (ATC) KTC 6006 Chiller

Applied Thermal Control (ATC) KTC 6006 Chiller



Compact self contained unit. Temperature display. Factory set temperature. 500 Watt cooling capacity.



If you need reliable cooling and wish to check the running temperature of the chiller this model is for you. High and Low temperature alarms are also included.



Chiller Specification



Dimensions L x W x H 330 x 315 x 515 mm
Cooling capacity (water @ 17°C) 480 watts
Temperature Fixed temperature operation, factory set at 10°C (20°C ambient)
Temperature stability +/- 0.2°C (with a stable load)
Digital temperature display Standard
Temperature alarm Adjustable High / Low
Low fluid level alarm Audio/ Visual
Auto diagnostic functions Controller and sensor
System volume 1.5 litres
Pressure control system Standard fitment internal - user adjustable
Compatible fluids Hexid fluids / water / propylene glycol
Fluid connections 10mm i.d. hose tails & 1/4" BSP female
Compressor over - load protection Standard
Emergency Off (EMO) Via main circuit breaker (MCB)
Tool-less access No user serviceable parts
Noise level 55 dB(A) @ 1 metre
Weight 30Kg



PDF Manual



Serial# 040181
