Agilent 81110A Pulse Panel Generator

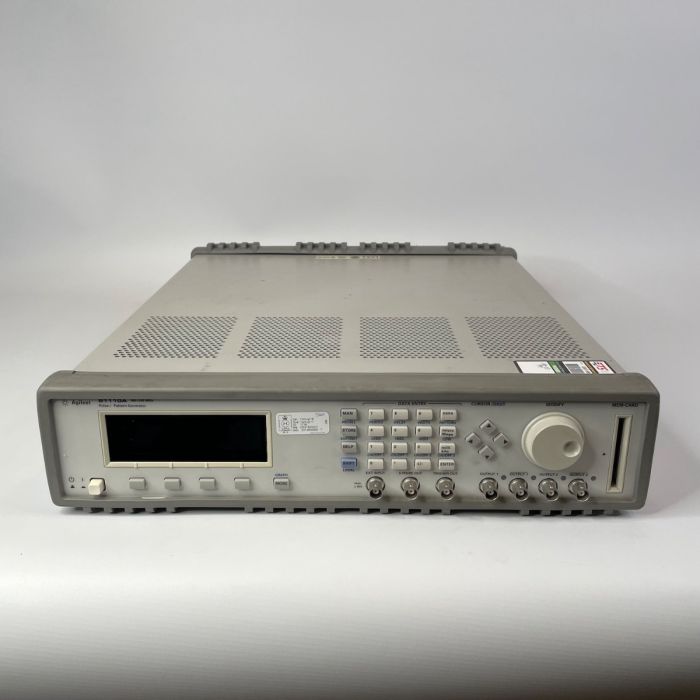

Agilent 81110A Pulse Panel Generator with 81111A Channel

The Agilent 81110A generates all the standard pulses and digital patterns needed to test current logic technologies (CMOS, TTL, LVDS, ECL, etc.).

• Variable pulse parameters in pattern mode as well as in pulse mode
• Synchronouslytriggerable
• Simulation of reflections/distortions
• Three/four-level codes
• The pulse generator has been taken from a closing business, in good operating condition, passes all start up tests. Images form part of the description.

Specification:

• Frequency range: 1-165 mHz
• Variable delay range: 606ns to 999.5s
• Period RMS jitter: 0ns to 999.5s
• Width range: 3.03ns to 999.5s
• Amplitude range: 100mv to 20v
• Transition time: 2.00ns to 200ms
• Source impedance: 50 Ohm or 1kOhm
• Overall dimensions: 43 x 52 x 9cm (w x d x h)
• Weight: 9.2kg
• Electric Supply: 100-230VAC 50/60Hz

Location F1
