Agilent 1100 Series Binary Pump G1312A

Agilent 1100 Series Binary Pump G1312A

The Agilent/HP 1100 Series G1312A Binary Pump ensures virtually pulse-free and stable solvent flow, with dual floating pistons in series, precisely servo-controlled. This design with variable stroke volume allows pulse-free solvent delivery and efficient mixing. An inlet-valve electronically activated and synchronized to piston stroke-eliminates vapor formation with volatile solvents and is maintenance-free. With high-speed proportioning valve and pre-configured vacuum degasser, for convenient low-pressure mixing of up to four solvents and highest flexibility in solvent choices.

Flow Precision: <0.3 % RSD (typically <0.15 % RSD)
Flow Range: Setpoints from 0.001 to 5.0 ml/min, in 0.001 ml/min increments
Operating range: 0 – 40 MPa (0 – 400 bar, 0 – 5880 psi)
Pulsation: <2 % amplitude (typically <1 %) at 1 ml/min isopropanol at all pressures >1 MPa (> 10 bar, >147 psi)
Compressibility compensation: User selectable, based on mobile phase compressibility
Delay volume: 180 – 480 µl (600-900 µl with mixer) dependent on back pressure
Recommended pH range: 1.0 – 12.5. Solvents with pH <2.3 should not contain acids which attack steel

Serial# DE91605353

pdf manual

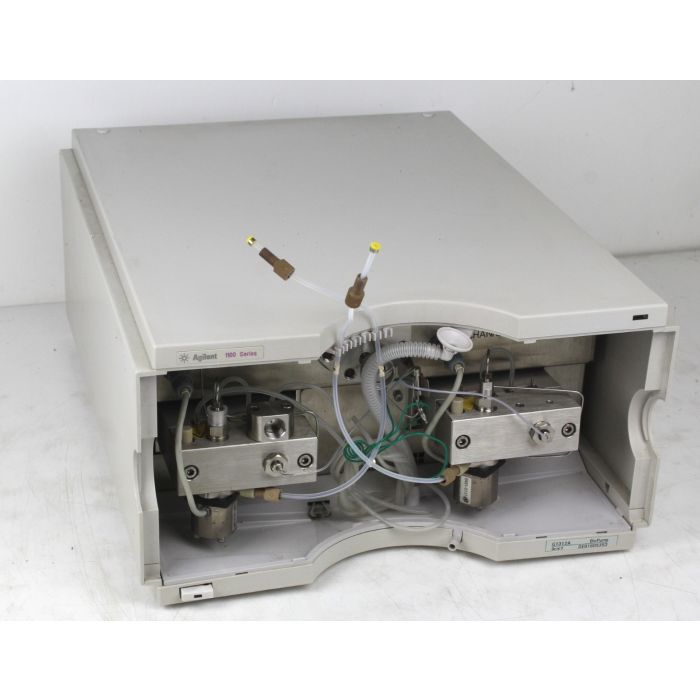

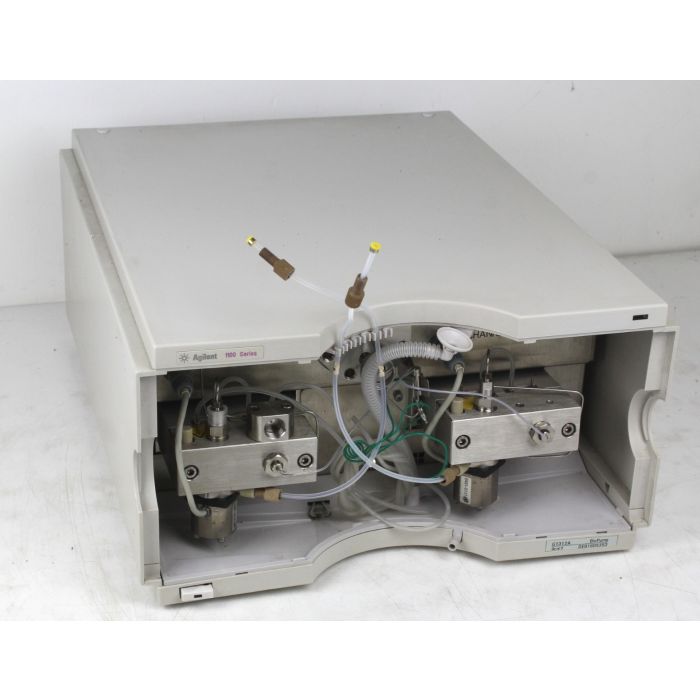

Unfortunately this item is also missing the interface card and front cover, so we are selling at a spares/repair price, otherwise in excellent physical condition
