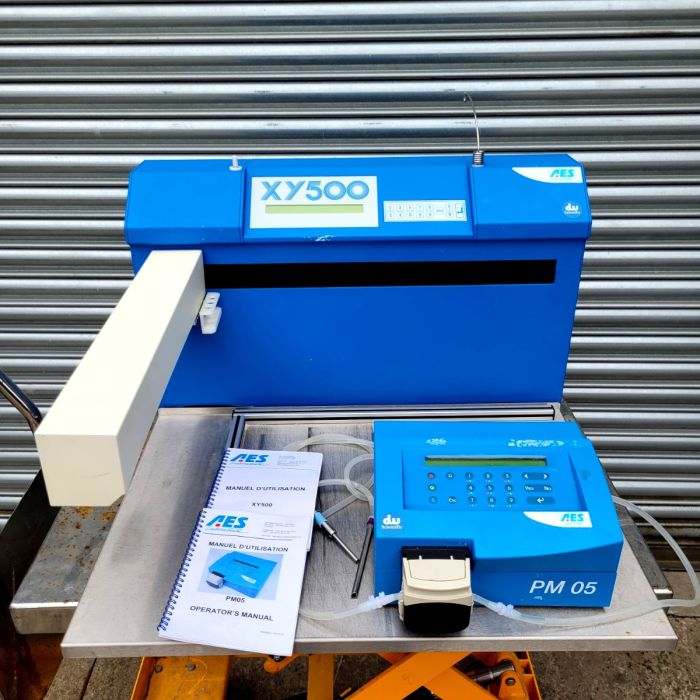

AES XY 500 Automated Tube Filler Dispenser, DW Scientific With PM05 Peristaltic Pump

AES XY 500 Automated Tube Filler Dispenser, DW Scientific
With PM05 Peristaltic Pump

Microbiology Dispenser + XY500 Automatic Arm Module

Part of our AES Blue Line, the combination of PMi and XY500 automates the filling of your tubes and bottles to provide you with your very own ready-to-use culture media. The quality of the dispensed media ensures high performance diagnostic for your veterinary lab.
Automated culture media filling system

Replacing manual operations of culture media preparation, PMi (High Precision Peristaltic Dispenser) and XY500 (Robotic Module) will enhance the productivity of your laboratory. They can fill up to a 1900 tubes per hour, and this with complete accuracy : a real cost-effective solution. With an integrated calibration system, save programs to automatically dispense the right dose of culture media (from 1ml to 500ml) into your tube or bottle.
Quality features for a quality solution

The preparation of your culture media is a critical part of any laboratory which performs veterinary diagnostic. As part of the AES Blue Line, PMi-XY500 shows complete reliability and efficiency.

Reproducibility: Tubes and bottles are filled with a high level of accuracy as precision is 1% for 9, 15, 90, 225 mL doses

Flexibility :

• Dispense any kind of culture media with 2% accuracy for dosis up to 20l. For all tubes and bottles up to 200 mm height (with XY500)

XY500, Robotic Module

Tray dimensions : W x D x H : 710 x 500 x 20 mm

Positioning repeatability > 99%

Interface for PM05 connection : RS232

Overall dimensions :

W x D x H : 710 x 650 x 450 mm

Weight : 25 kg

Power: 230 V 50Hz

PM05 Pump

User-friendly
• Easy to program using the menu-driven keypad
• Up to 20 programs can be stored in the memory
• Easy-to-load tubing makes the operation quick and easy
• Compact and easy to handle

Performance
• Manual or automatic operation : enter the quantity of doses to be
dispensed and the interval delay time
• A standby mode keeps the culture media recirculated, thus keeping
the media in suspension at the dispensing temperature
• Foot switch connection for an optimal performance adapted to
the operator

Repeatable
• Precision of ±0.1 ml for doses up to 20 ml
• Automatic calibration
• Calibration data can can be individually saved in each program
• Anti-drip feature
• Ideal for 9 ml dilution tubes for laboratories
which care about volume precision
