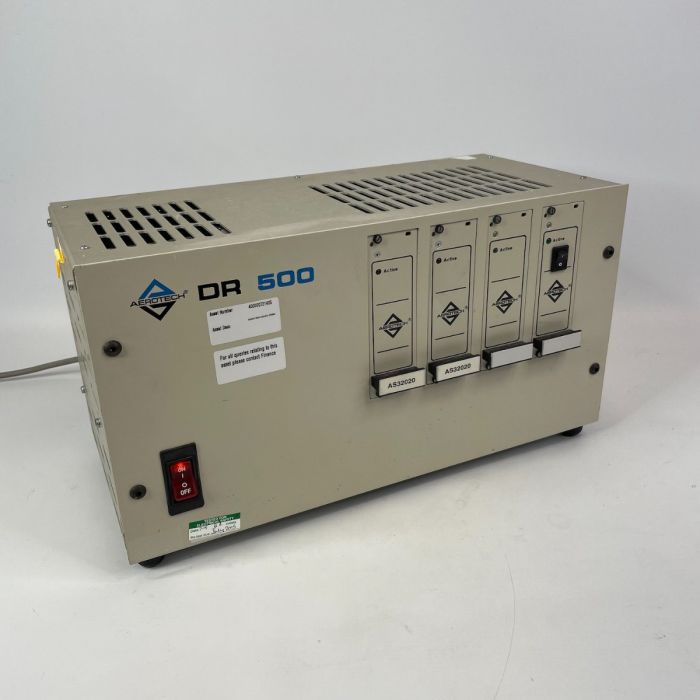

Aerotech DR500 Drive Chassis with 2 x AC Brushless Drive AS32020C-F6

Aerotech DR500 Drive Chassis with 2 x AC Brushless Drive AS32020C-F6

Aerotech’s DR500 Drive Chassis is an integral part in a UNIDEX 500 or UNIDEX 600 based control system. The DR500 is a 19” rack mount chassis with provision for holding up to four individual amplifiers (DC servo, AC brushless, or microstepping) that are inserted into the front of the DR500 panel.

The Aerotech is fitted with 2 x AS32020 A.C. brushless drives. In good working condition, images form part of the description.

Specification: AS32020

Peak Current Output (2 sec): +/-20 Amps
Continuous Output Current: +/-7Amps
Peak Output Voltage: 160V
Weight: 500g
Electric supply: 230V, 50/60Hz
