ABI 7500 Real-Time PCR

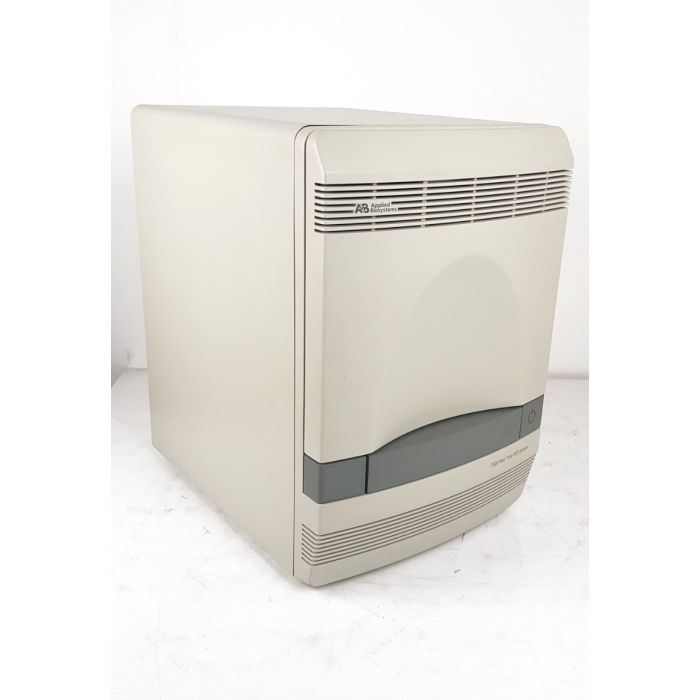

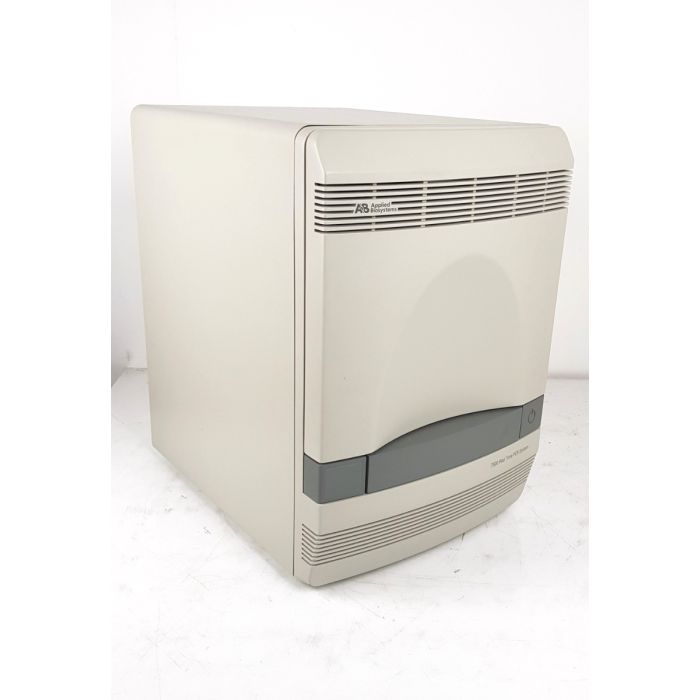

ABI 7500 Real-Time PCR System

With the Software, on its Dell PC.

Description
The 7500 Real-Time PCR System is a powerful platform for labs requiring superior performance and maximum dye versatility. This system is a sophisticated platform for users who require extended capabilities and maximum versatility.

• Powerful, five-color platform is calibrated for the broadest range of dyes available: FAM™⁄SYBR® Green I, VIC®⁄JOE™, NED™⁄ TAMRA™⁄ Cy3™, ROX™⁄Texas Red®, and Cy5™ dyes
• Specialized optical system enables easy and accurate calibration to new dyes without requiring the addition of new filter sets
• Advanced multi-componenting algorithm minimizes spectral crosstalk – superior for multiplexing
• User-friendly software includes plate set-up wizards, multi-plate data viewing capabilities, and advanced analysis tools to make data processing simple and straightforward

Now the easy-to-use StepOne software is available for both the 7500 and 7500 Fast systems with the 7500 Software v2.x upgrade. The 7500 Software v2.x incorporates your favorite StepOne Software features, such as a variety of plate setup wizards, standard curve dilution and master mix recipe calculators, QC flags, data filters, and email notification when a run is finished. The 7500 Software v2.x also includes an enhanced Gene Expression Study package and has a variety of new melting curve protocol options, including multiple peak detection, step and hold temperature control, and customizable ramp rates.

The NEW Gene Expression Study package accommodates large studies better than any other instrument software package:
• Import an unlimited number of Comparative CT (relative quantitation) files to one study
• Group samples and view data both by technical replicate group and biological replicate group
• Use any gene(s) as an endogenous control, including averaging multiple controls together
• Enter known efficiency values to be factored into the RQ results

21 CFR Part 11 Module available
The SDS v1.4 21CFRp11 Module is a powerful tool for assisting with 21CFRp11 compliance, while still offering the flexibility of user-customizable configuration settings.
• Individual user log-ins can be added for up to four user groups, each group with designated permission settings
• User-customizable permission settings include fourteen system activities, e-signature authority designation, and additional security settings to give you maximum control over your compliance efforts
• Audit trails can be enabled or disabled depending on your traceability needs
• A selection of e-signatures is available to ease e-signatures into your workflow

Supports Many Applications
Applications include gene expression analysis, pathogen quantitation, SNP genotyping, isothermal and +⁄– assays utilizing internal positive controls. To facilitate many of these applications, Applied Biosystems® provides preformulated, ready-to-use, quality-tested, TaqMan® assays for use with the 7500 system. Now you can reduce your assay optimization efforts.

Specifications:

Calibrated Dye:                         Cy3™, Cy5™, FAM™, JOE™, NED™, ROX™, SYBR® Green I, TAMRA™, Texas Red®, VIC™
Dimensions: Depth:                     cm (17.72 in), Height: 49 cm (19.29 in), Width: 34 cm (13.39 in)
Dynamic Range: 9 logs
External Computer:                     1 GB NON ECC 533 MHz DDR2, 16X DVD, 80 GB HD, Dell Minitower: Celeron 346 (3.06 GHz)
For Use With (Equipment):           7500 System
Format:                                      96-well plate
High Throughput Compatibility:    Multiplexing
Input Voltage:                            100V to 240V, 50/60 Hz
Optics:                                       5 emission filters, 5 excitation filters, CCD Camera, Tungsten-halogen lamp
Passive Reference Dye:               No ROX, ROX (Pre-mixed), ROX (Separate Tube)
Peak Block Ramp Rate:               2.5°C⁄sec
Power Limit:                               950 W
Precision:                                   99.7% confidence (5000 & 10000 copies)
Product Size:                               1 system
Reaction Speed:                          Standard
Reaction Volume Range:              20-100 µl
Sample Ramp Rate:                    ± 1.1°C⁄sec
Sensitivity:                                 1 copy of RNase P gene (human genomic DNA)
Software Compatibility:               21 CFR Part 11 Module (optional), 7500 System Software (RQ included), Primer Express
Temperature Accuracy:                0.25°C (35°C to 95°C after 3 min)
Temperature Range (Metric):        4-100°C
Temperature Uniformity:               0.50°C (after 30 sec)
Thermal Cycling System:              Peltier-Based System
Throughput:                                4 to 5-96-well plates per 8-hr day
Weight:                                       75 lbs

Power: 120V - 240 V 50/60Hz

Serial No: 275000011

YOM: 2004, however in dry storage unused for 10 years
